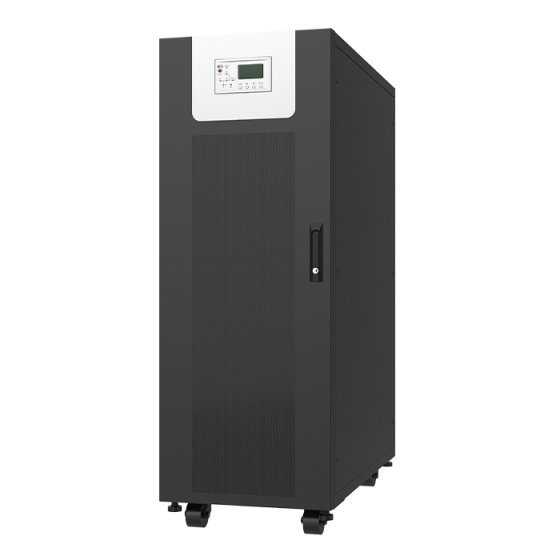

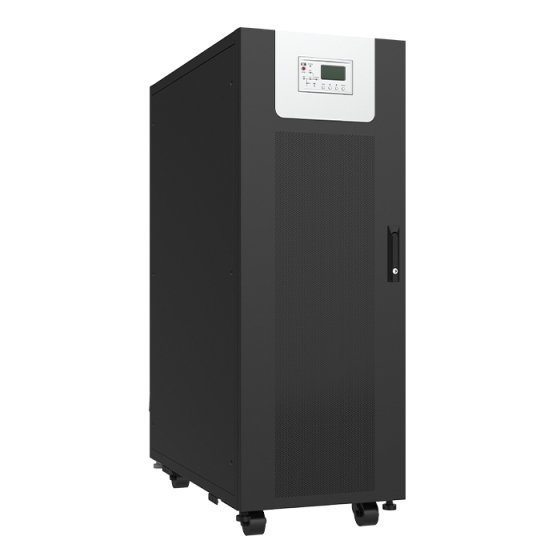

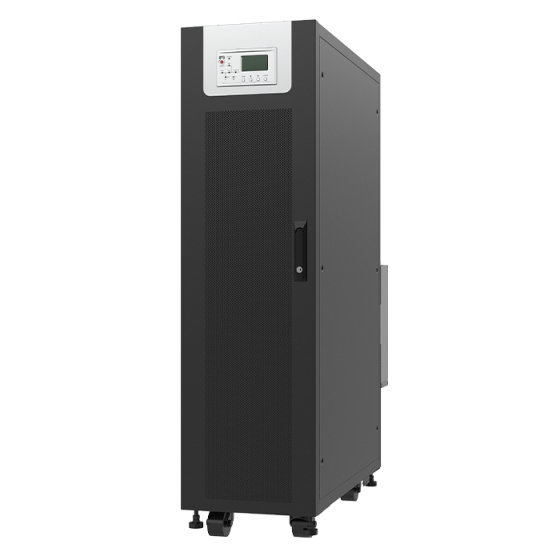

15-40kVA Tower Online UPS is designed for the overseas 208V market, it has a high output power factor, high system efficiency and small floor space which is easy to deploy. Its compact structure and quick-installation battery pack make it become an ideal choice for small and medium data centers.
High efficiency, up to 94%
● Battery cold start
● More capacity, up to 40kva
● Output power factor =1
● Input current THDi＜4%
● Friendly operation interface, high-resolution LCD screen
● Battery management with smart charging control
● Four circuit breakers, easier to operation, less human fault
| Model | DTC33015S | DTC33020S | DTC33030S | DTC33040S | ||
| System Capacity | 15kVA | 20kVA | 30kVA | 40kVA | ||
| Input | Phase | 3 phases + Neutral + Ground, 208V/220V (line-line) | ||||
| Nominal Input Voltage | 208/220VAC | |||||
| Input voltage Range | 177~239Vac (line-line), full load; 187~253 (line-line), full load 125~177/132~187Vac (line-line), load decrease linearly from 100% to 40% according to the min phase voltage |
|||||
| Input Frequency Range | 40Hz ~ 70Hz | |||||
| Input PF | 0.98 > 25% load, 0.99> 50% load | |||||
| Input THDi | <4% (100% liner load) | |||||
| Bypass | Rate Voltage | 208/220Vac (line-line) | ||||
| Ratel Frequency | 50/60Hz | |||||
| Bypass Voltage Range | -10~40%; +10~25% (settable) | |||||
| Frequency Range | +/-1Hz, +/-3Hz, +/-5Hz (settable) | |||||
| Bypass Overload | 110% for long ter operation; 125% for 10 mins; 150% for 1 min; 1000% for 10ms |
|||||
| Output | Nominal Output Voltage | 208/220 | ||||
| Voltage Regulation | +/-1% (100% balance load) | |||||
| Output THDu | <2% Linear load; <6% Non-linear load | |||||
| Frequency Regulation | 50/60 Hz +/-0.1% | |||||
| Crest Factor | 2.5:1 | |||||
| Output PF | 1 | |||||
| Inverter Overload | 110% for 1 hour; 125% for 10 mins; 150% for 1 min; | |||||
| Battery Overload | 125% for 10 mins; 150% for 1 min | |||||
| Battery | Charging Power | up to 15% output active power | ||||
| Battery Number | 20pcs | |||||
| System | Efficiency | Normal Mode | 94% | |||
| Battery Mode | 94% | |||||
| ECO Mode | 98% | |||||
| IP Class | IP20 | |||||
| Interface | RS485, USB, Programmable Dry Contact | |||||
| Temperature | Operation: 0 to 40˚C Storge: -25 to 55 ˚C | |||||
| Relative Humidity | 0-95% Non-condensing | |||||
| Altitude | <1000 m. 1% power derating for every 100m rise | |||||
| Noise (1 meter) | 68dB @ 100% load; 65dB @ 45% load | |||||
| Physical | Dimension W×D×H(mm) | 380mm*840mm*1400mm | 380mm*940mm*1400mm | 500mm*1000mm*1400mm | ||
DM Series Modular Online UPS 30-300kVA (200V/208V/220V)
The series Modular Online UPS (208V&120V) is cost-beneficial product for medium and large data center. 50kVA power module in 4U height, 500kVA in one cabinet and the footprint less than 1.45m2, 3 units in parallel for a capacity up to 1500kVA. It provides 60kVA, 120kVA, 180kVA, 300kVA for choosing. Meet the requirements and standards of products in 208V & 120V perfectly.
DMX-UL Series Modular Online UPS 30-120kVA (200V/208V/220V)
The series Modular Online UPS (208V&120V) that has passed UL certification is cost-beneficial product for medium and large data center. 50kVA power module in 4U height. The series has all the advantages of DM 30-300kVA series. And it has passed UL certification, meets the requirements and standards in Europe. It provides 120kVA for choosing.

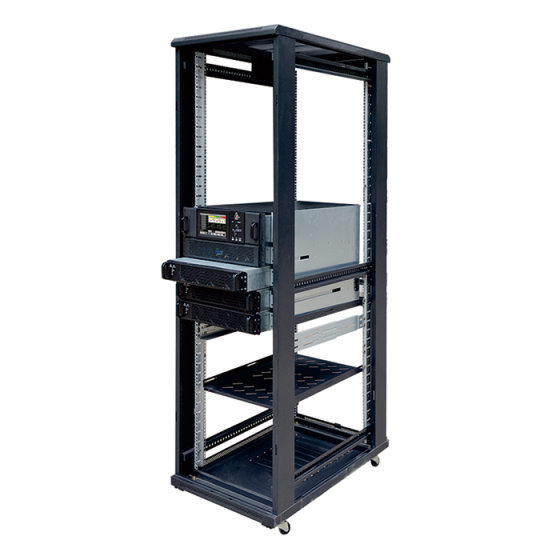

DM Series Modular Online UPS 10-50kVA (200V/208V/220V)
