Energy efficient
● Large air volume, small enthalpy difference, high sensible heat ratio design, to meet the temperature control needs of the server room.
● High energy-efficient compressor with electronic expansion valve as standard for fast response and more accurate flow adjustment.
● High efficiency backward tilting centrifugal fan with low energy consumption and high air volume to ensure uniform temperature and humidity distribution in the server room.
● The use of high-efficiency internally threaded copper tubes and hydrophilic layer-plated open-window aluminum fin evaporators for higher heat transfer efficiency.

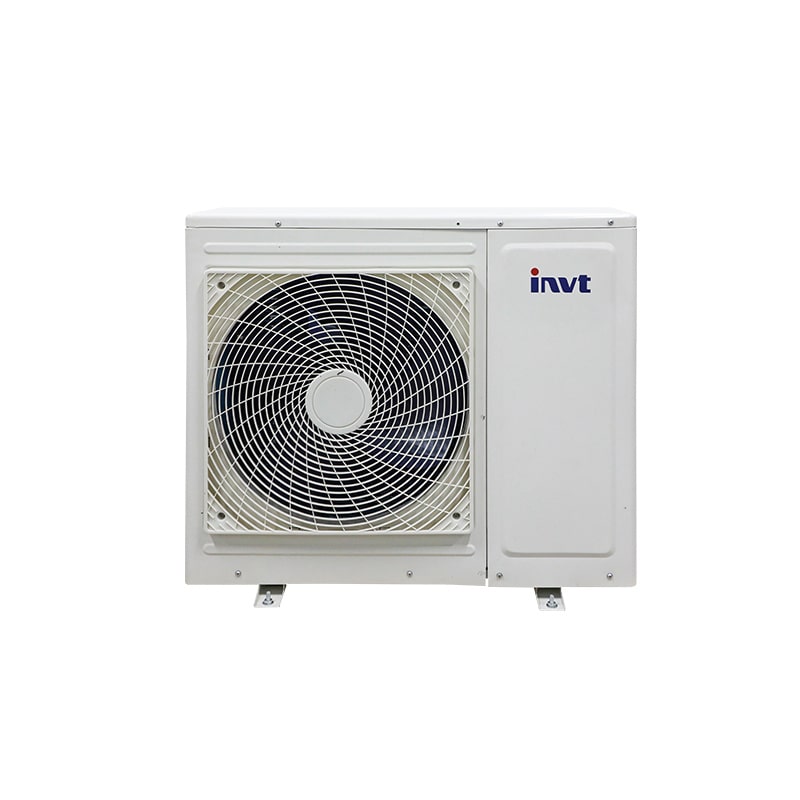

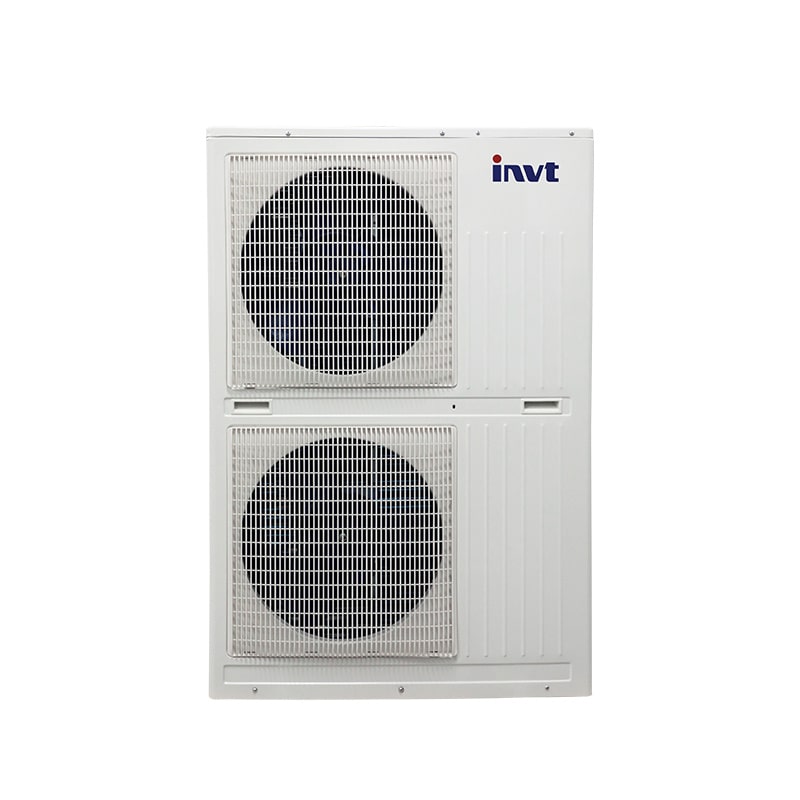

● Outdoor fan with infinitely adjustable speed control, matching condensing pressure operation, energy saving and noise reduction.
● Standard with electrode humidifier, higher humidification efficiency and wider application range.
Safe and reliable
● Use of rigorously certified, high-quality devices to enhance reliability.
● Products are subjected to rigorous and repeated testing and verification, with high standards required for high quality delivery.
● 365 x 24 hours non-stop operation, long life design and low maintenance costs.
● Ultra-wide grid adaptability to avoid frequent start/stop of air conditioners.
● Highly efficient and environmentally friendly refrigerant R410A as standard.
● Threaded quick coupling design for no welding on site.
Intelligent control

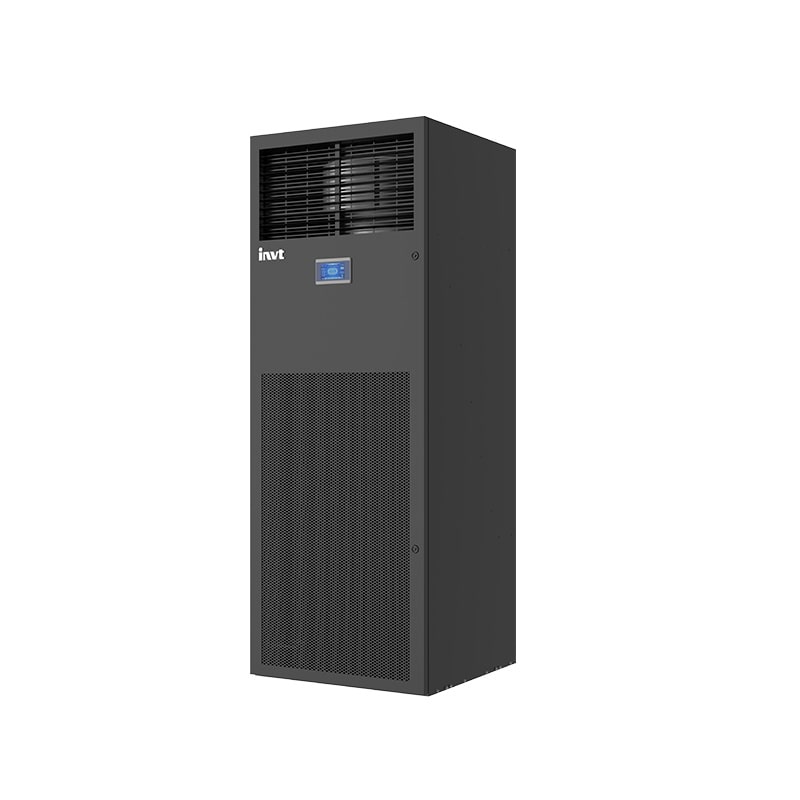

● 4.3-inch true color touch screen, multi-level password authority, system self- test diagnostic function, more intelligent;
● Comprehensive monitoring and display of power supply voltage, frequency, phase sequence, cooling capacity, air volume, temperature and humidity curve and other key information, real-time control of the normal state of the system;
● Up to 64 air conditioners can be rotated patrol group control to achieve scheduled rotation, fault rotation, cascading, demand synchronization, anti- competitive operation, etc;
● Support power-on self-start and timer on/off functions, easy to manage air conditioners;
● Local storage of not less than 1000 history records, easy to view and trace;
● Standard RS485 interface, support optional SNMP interface.
Customizable
● Standard with electrode humidifier, support optional wet film humidifier;
● 100% full frontal maintenance and more flexible installation;
● Support optional upper pipe / upper drainage to meet the needs of different scenarios;
● Support AC/EC fans optional according to actual needs;
● Optional dual power input;
● A variety of air supply methods to meet a variety of applications;
● Optional phase tolerance function to better protect the power of air conditioners.
