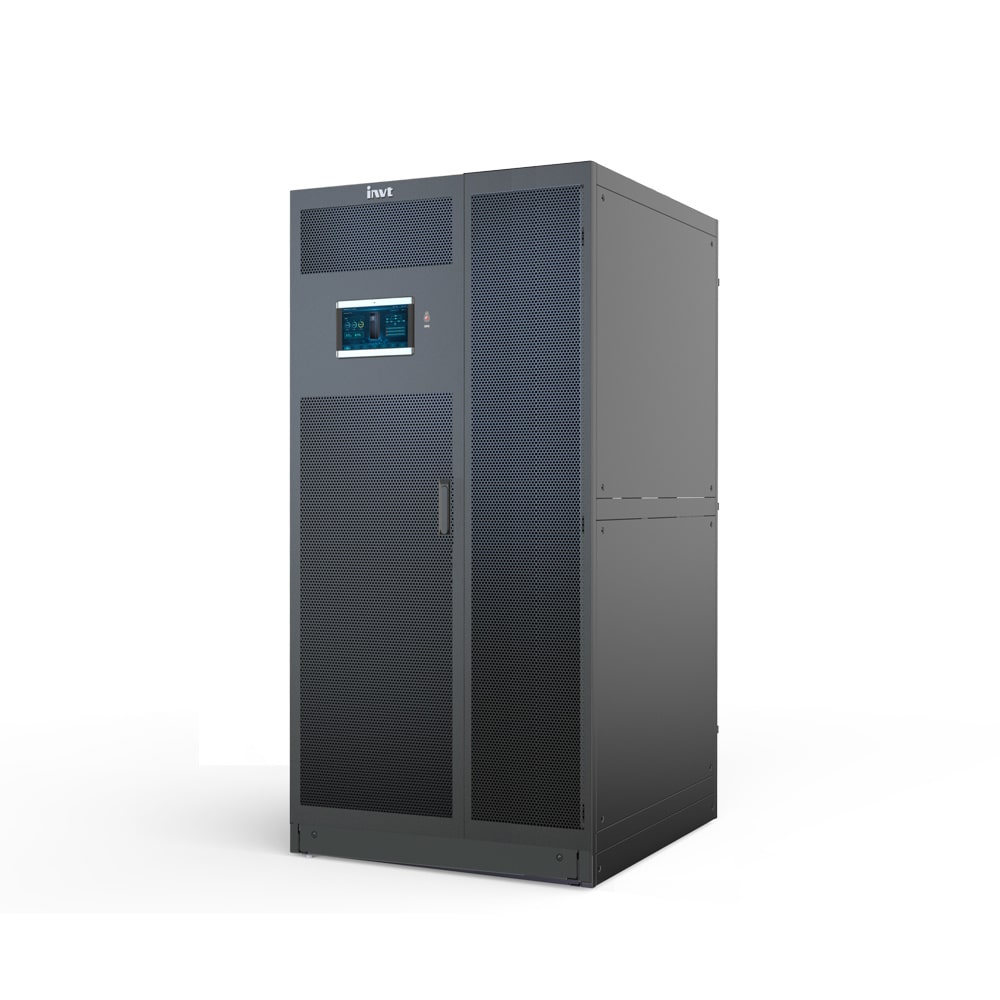

RM Series 100-600kVA Modular Online UPS(380V/400V/415V)

This series Modular UPS is equipped with hot-swappable power module and bypass & monitoring modules, which are designed for easy maintenance and redundancy. 100kVA power capacity in a 4U-high module, combined with a bypass module that is integrated with various communication ports.

Email Us

Low-carbon & Green

This series 3 level inverter, fully digital control. Achieving the input power factor ≥0.99, input THDi ≤3%, leading overall efficiency up to 96%.

Wide Range of the battery number

Support 30-48 pcs batteries (settable).
Shared battery pack in parallel UPS system.
Support Lithium battery.
Battery N line free patent.

Saving power distribution switch and instruction cost. Therefore, it becomes more flexible for customer.

High Power Density

The 600kW system can reach to 3.2MW.
Power module: the single module power density 100kW/4U.
Meet the large data center application site.

LCD screen with IOT & intelligent monitoring

10-inch color touch screen with new display style.
Support IOT and intelligent data monitoring.
Provide users intuitive display while reducing human fault.
Record maximum 2000 history logs.

All-round intelligent detection

Monitoring the operating status of critical component, able to set early warning.
Record the rectifier/inverter abnormal info of the power module and catch the waveform which can be exported to computer by USB.

High system capacity up to 3.2MW

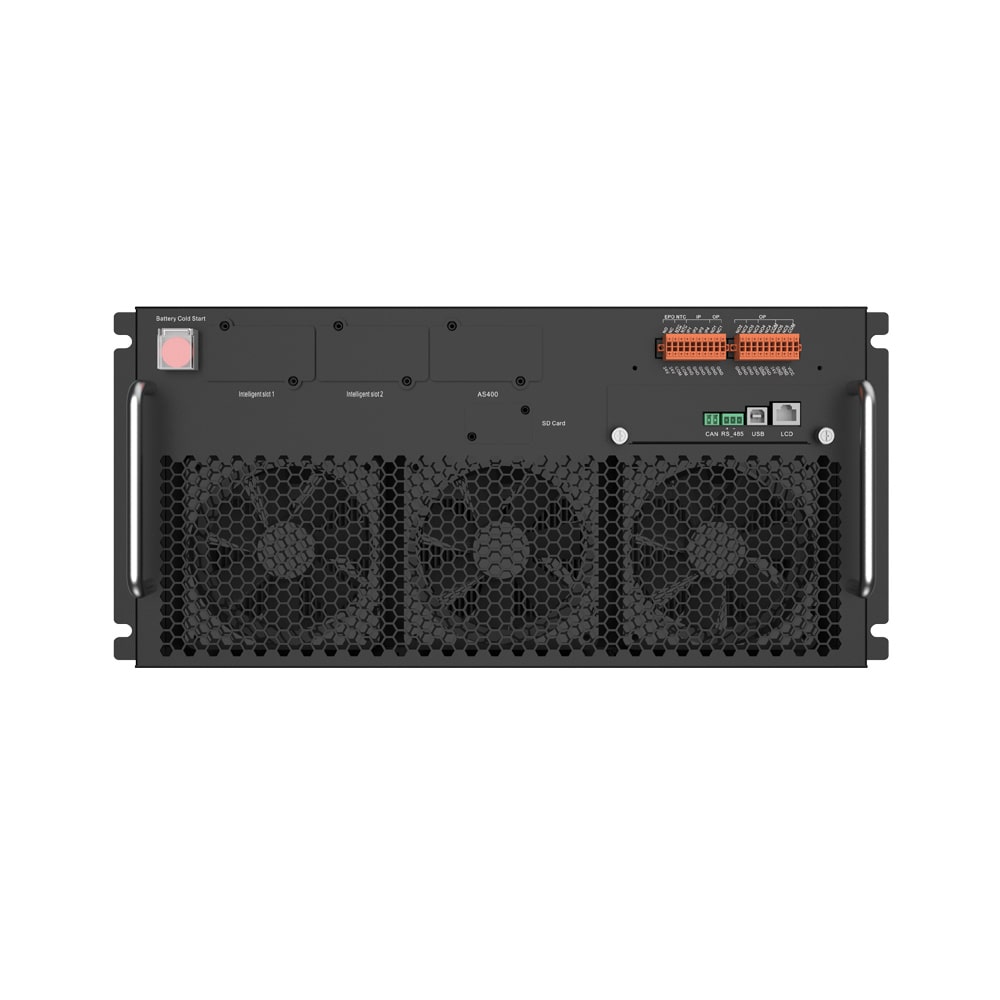

Power Module

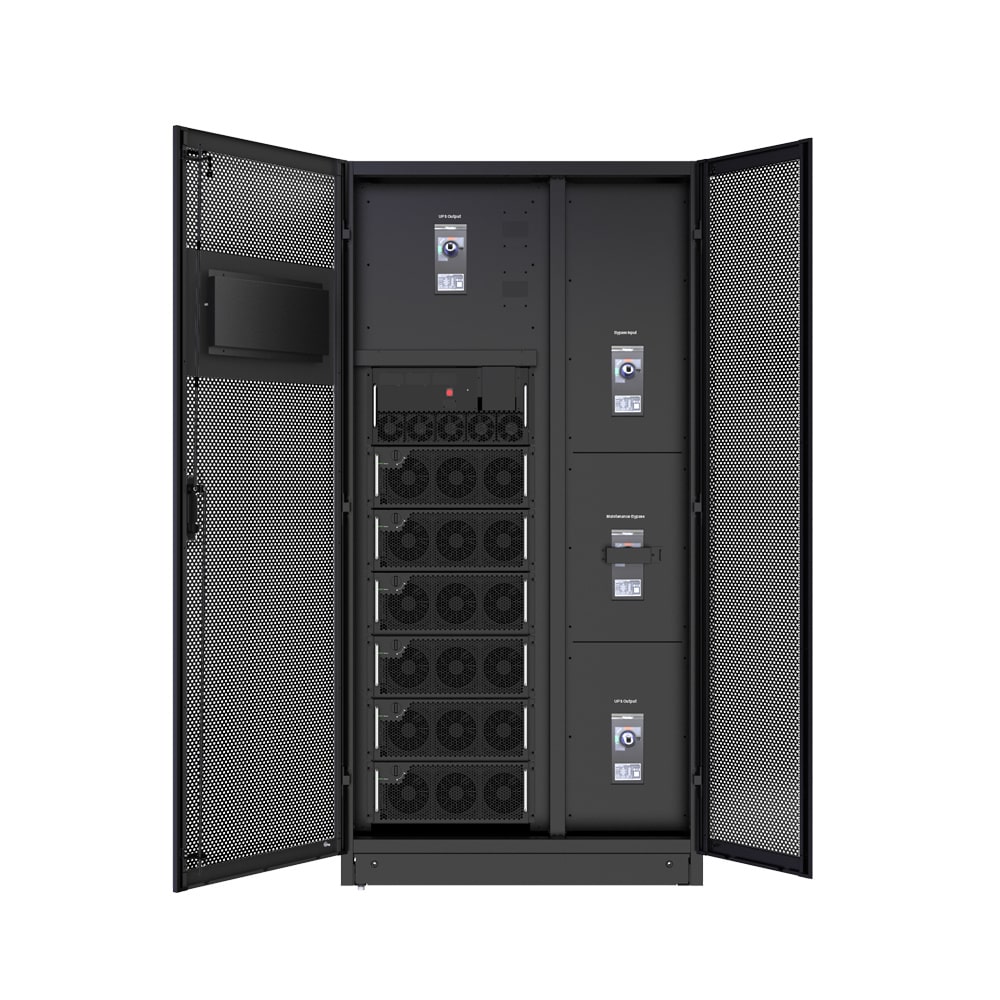

There are 6 slots for power modules, easily achieve module redundancy.
UPS Parallel
Parallel Unit maximum: 4 cabinets.
Total capacity reach to 3.2MW.
Standard Cabinet

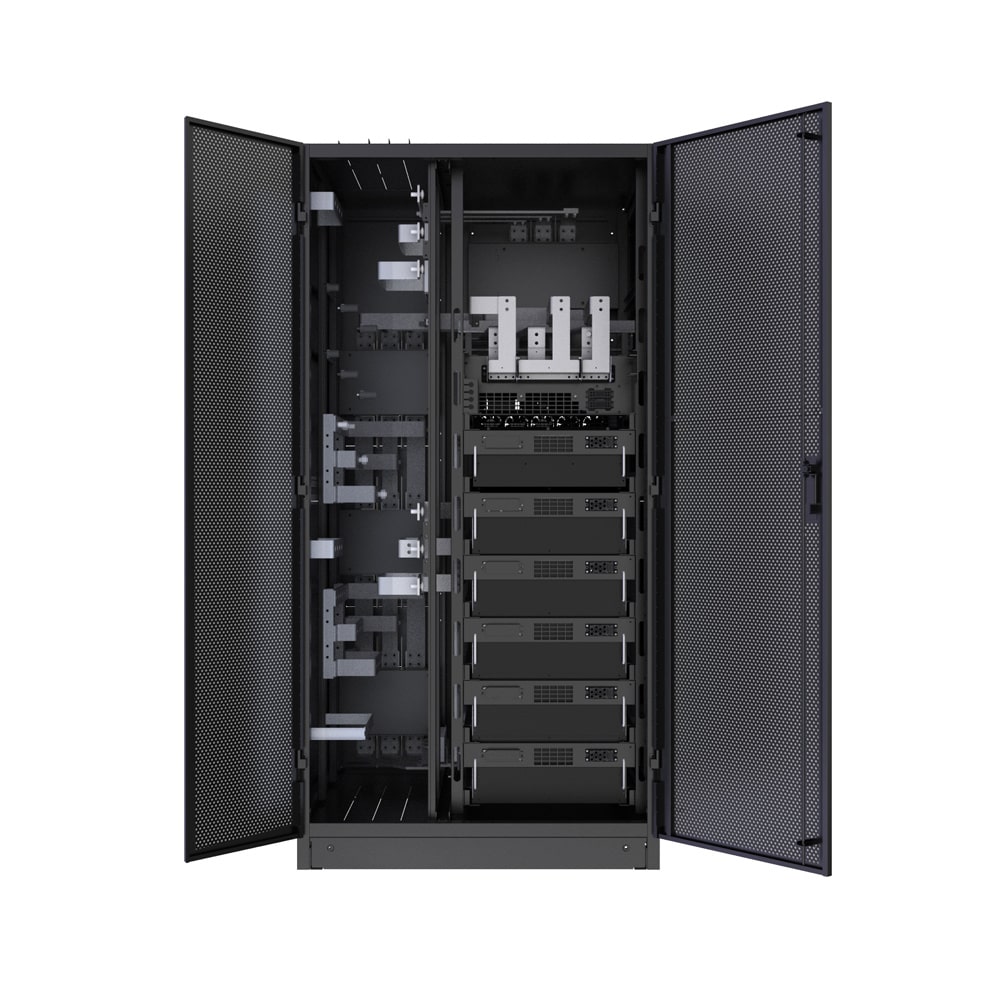

There are 5/6/8 slots UPS standard cabinets.

Model			RM600/100D
System Capacity			600kVA
Power Module Capacity			100kVA/100kW
Input	Dual Input		Optinal
	Phase		3Phase+Neutral+Ground, 380/400/415VAC (line-line)
	Rate Frequency		50/60Hz
	Input Voltage Range		323~478Vac (line-line), full load; 323V~191Vac (line-line), load decrease linearly from 100%~40%; 191V~138V (line-line), load decrease linearly from 45%~35% according to the min phase voltage
	Input Frequency Range		40Hz～70Hz
	Input PF		>0.99
	Input THDi		<3% (100% Linear load)
Bypass	Rate Voltage		380/400/415VAC (line-line)
	Rate Frequency		50/60Hz
	Input voltage Range		Settable, default -20% ~ +15%
			Up limit: +10%, +15%, +20%, +25%
			Down limit: -10%, -15%, -20%, -30%, -40%
	Bypass Frequency Range		Settable, ±1Hz, ±3Hz, ±5Hz
	Bypass Overload		110% long term operation; 110% ~ 125% for 5 mins; 125% ~ 150% for 1 min;
			150% ~ 400% for 1 s; >400% less than 200ms
Output	Rate Voltage		380/400/415VAC (line-line)
	Rate Frequency		50/60Hz
	Output PF		1
	Voltage Regulation		±1%
	Output THDu		<1% , Linear load, <5% , Non-linear load
	Inverter Overload		<110% for 1 hour; 110%~125% for 10 mins;
			125%~150% for 1 min; >150% for 200ms
	Frequency Precision		±0.1%
Battery	Voltage		±180 ~ 288VDC
			30 ~ 32pcs derate to 0.7
			34 ~ 36pcs derate to 0.8
			38pcs derate to 0.9
			40 ~ 48pcs
	Voltage Precision		±1%
	Charge Power		Up to 15% * Output active power
System	Efficiency	AC Mode	>96%
		Battery Mode	>95%
	Display		LED+ Color touch LCD screen
	Interface		RS485, USB, CAN, Programmable Dry Contact, 2 Intelligent slots
	Option		SNMP Card, AS400 Card, Parallel kit, dual input kit, SPD, LBS, GSM
	Temperature		Operation: 0 ~ 40 ℃ Storge: -40~70℃
	Relative Humidity		0 ~ 95% Non-condensing
	Noise (1 meter)		75dB @ 100% load, 70dB @ 45% load
	Altitude		<1000m. Within 1000~2000m, 1% power derating for every 100m rise
Physical	Dimension	Cabinet	100011002000
	(WDH,mm)	Power module	440794.5174
	Weight (kg)	Cabinet	500
		Power module	50

Brochure of RM Series 100-600kVA Modular Online UPS(380V400V415V).pdf
