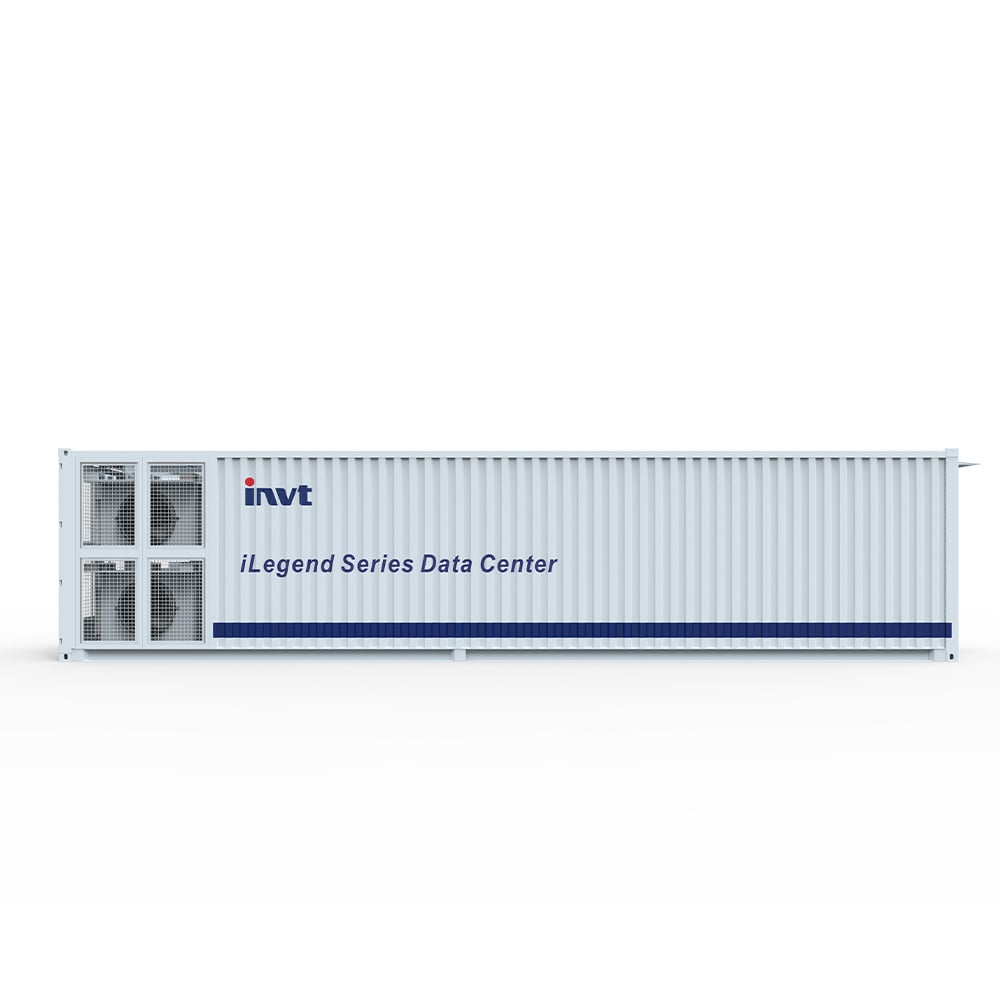

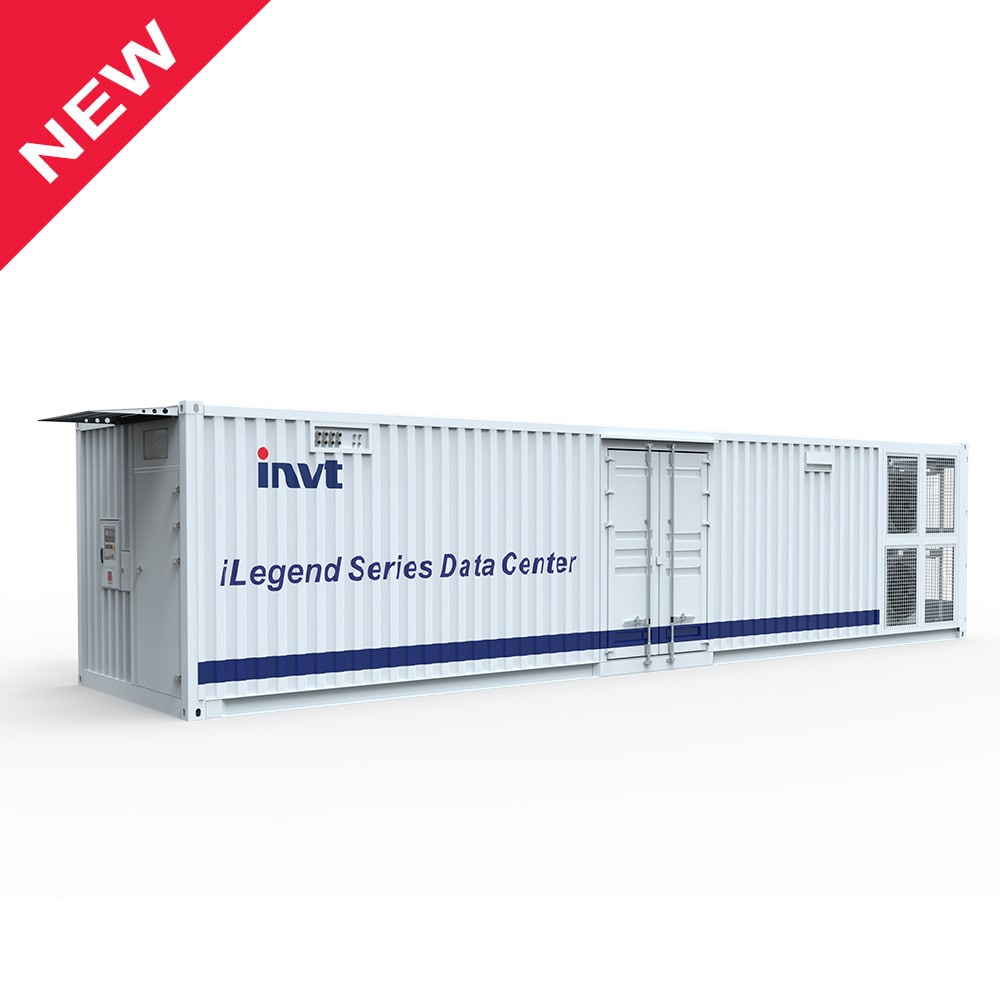

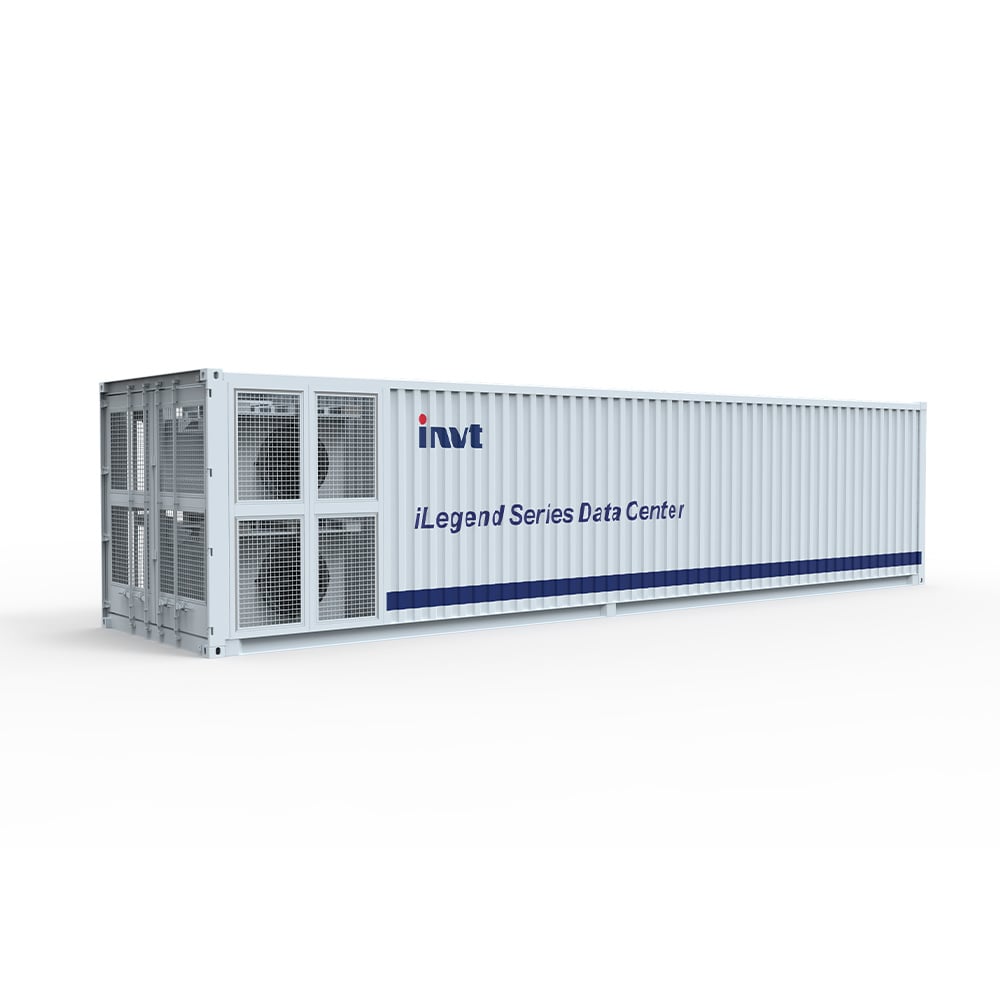

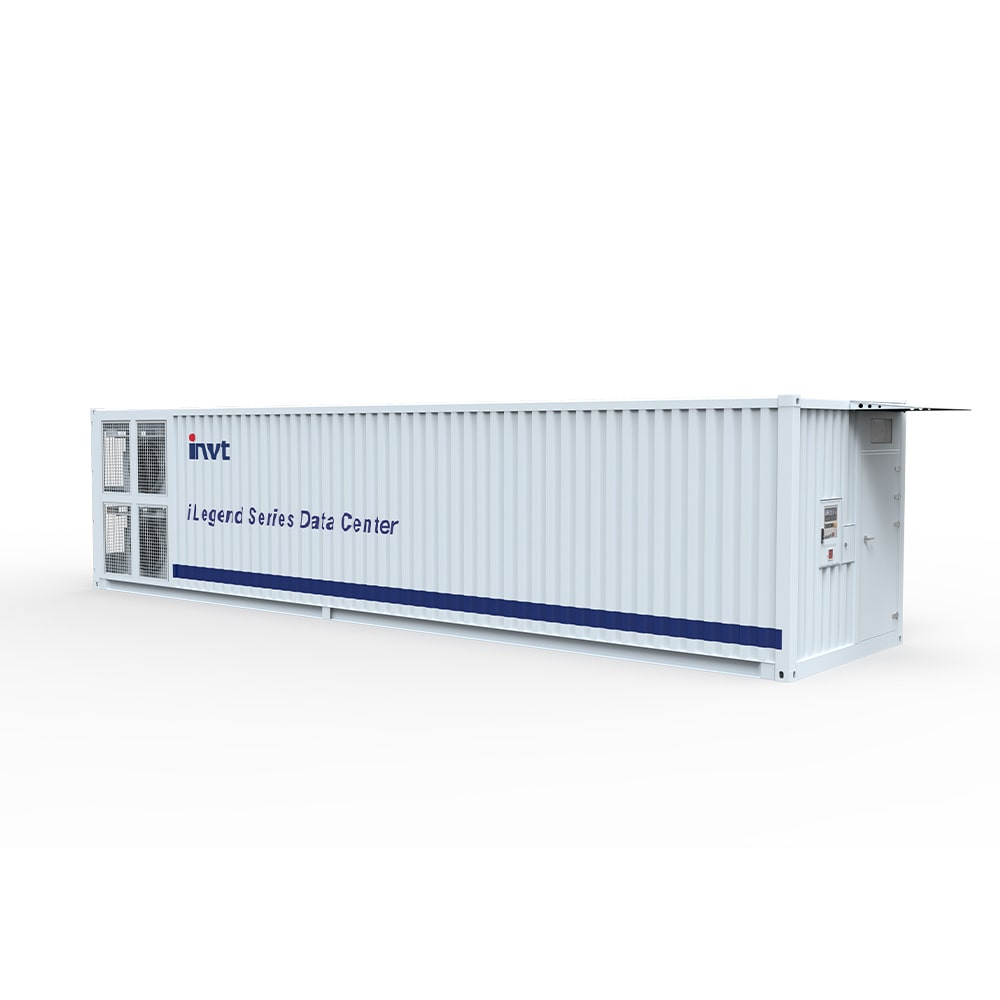

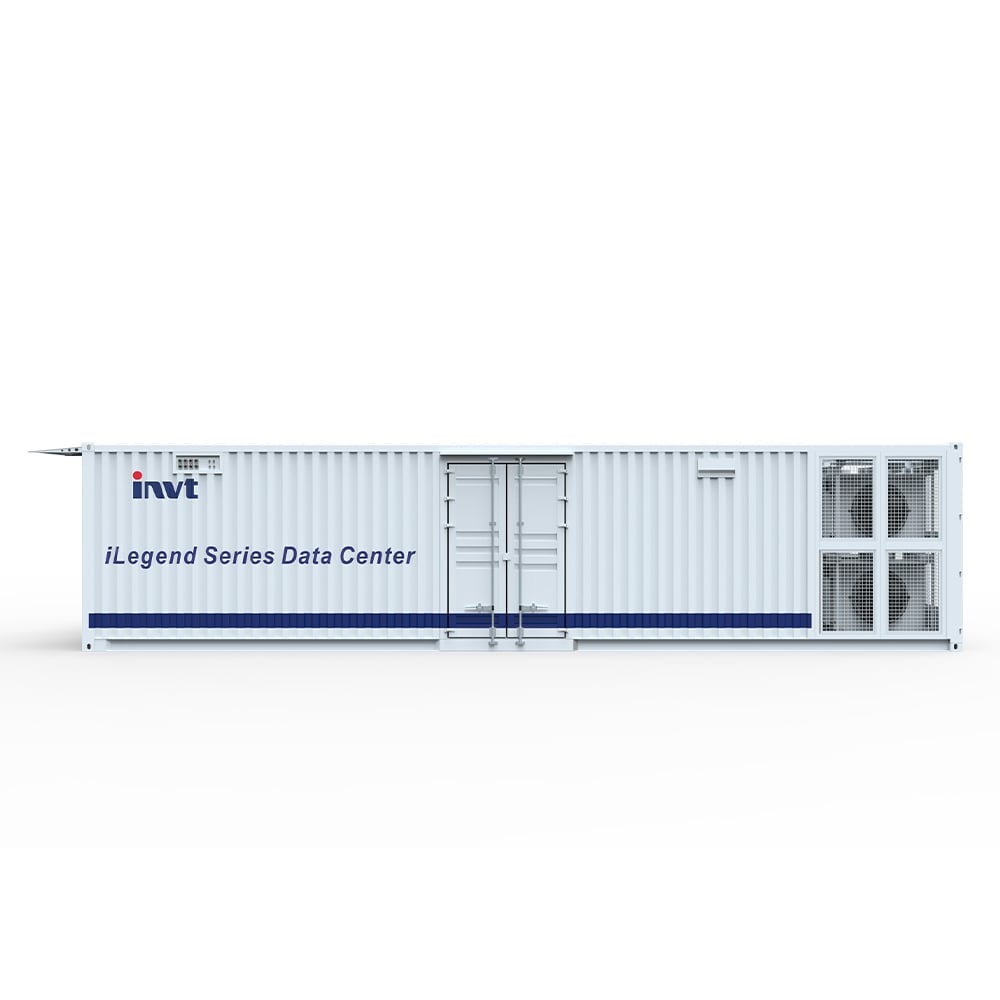

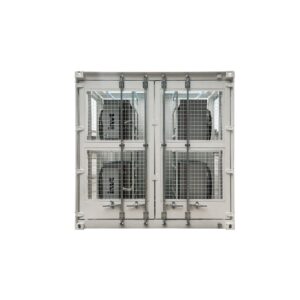

iLegend Container Data Center Solution

Support 3-8 cabinets, capacity up to 70kW. Specially developed and designed for outdoor use scenarios. It’s a 20ft/40ft standard container for transportation, factory prefabricated, and ready for operation after arrival. With a protection rating of IP55, it can be used in any harsh environment.

1. Factory prefabricated

2. 20ft/40ft standard container

3. All-in-one secure and reliable

4. IP55,automatic fire extinguishing system

iLegend Container Data Center Product Specification
Unit 40ft layout All-In-One solution 20ft layout All-In-One solution
Cabinet System Size of IT cabinet（W×D×H）mm 600×1200×2000 600×1200×2000
Num. of IT cabinet（pcs） 8 3
Power of each cabinet（kW） 6/9（High density） 6/9（High density）
Total power（kW） 48/72（High density） 18/27（High density）
Power and Distribution
System		 Power supply system  250A Dual input/ATS optional; 380/400/415V, 50/60Hz, 3Ph+N+PE; input lightning protection 8/20us, In=20kA, Imax=40kA 125A Dual input/ATS optional; 380/400/415V, 50/60Hz, 3Ph+N+PE; input lightning protection 8/20us, In=20kA, Imax=40kA
UPS Modular Online UPS 90~150kVA Modular Online UPS 40~90kVA
Battery back-up time In-row battery cabinet, the number of battery and capacity can be selected according to project requirements
PDU 16 port IEC PDU（C13*12+C19*4）,32A

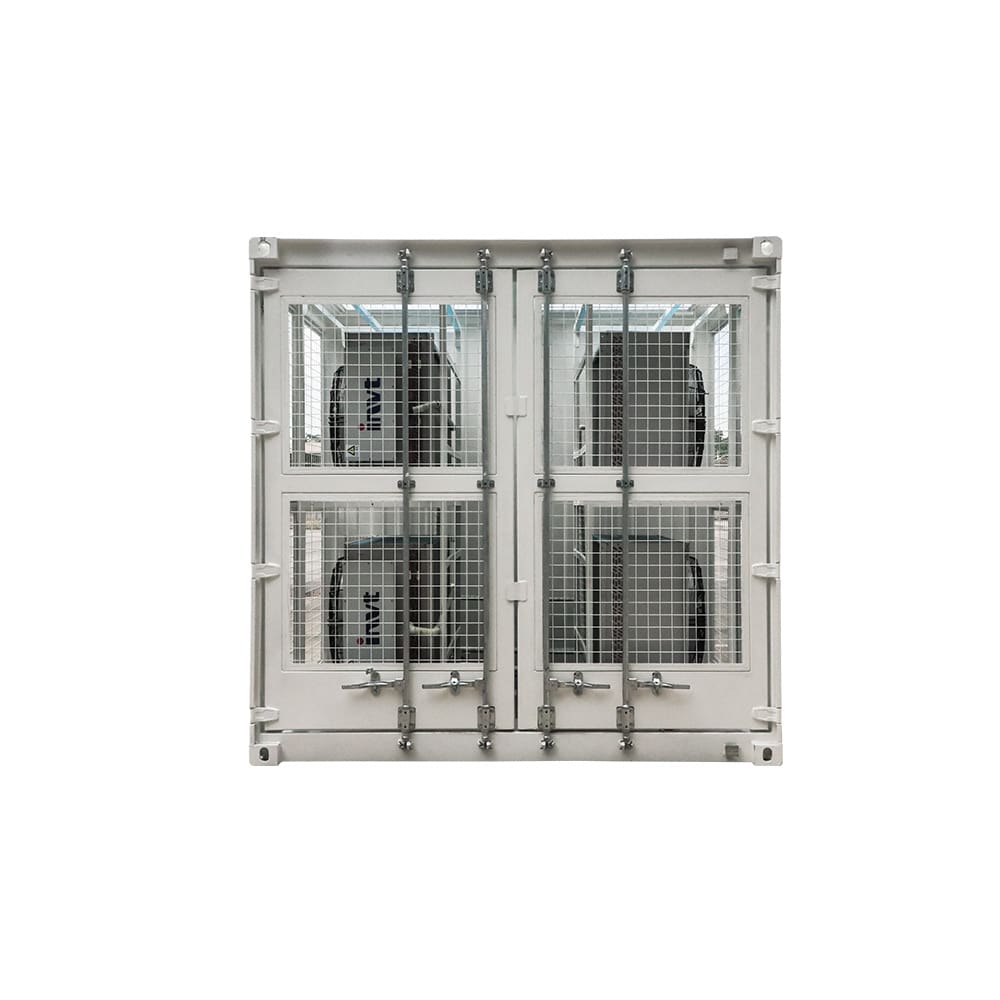

Cooling System Cooling method  Default installation of 25kW air-cooled inverter in-row air conditioner（300mm wide）
Monitoring System Power and environment system Monitoring host can realize the centralized monitoring of integrated power distribution cabinet, UPS, air conditioning, access control, video, fire, etc., and support sound and light, telephone, WeChat, SMS, e-mail multiple alarm methods
Access control Support IC card + password + fingerprint three-in-one access control system, optional face recognition
Local Display Support 10.1 inch touch screen, support local touch screen, client, remote Web, mobile app and other display methods
Fire Prevention System Fire extinguishing system Automatic flooding fire extinguishing system, cold/hot aisles are equipped with smoke and temperature sensor, automatic control of fire gas release , support for sound and light, gas release indicator and other warning methods, support for manual emergency opening of the fire extinguishing system (optional Pipe fire extinguishers)
Fire extinguishing gas FM200/HFC-227ea (Novec 1230 optional）
Container Structure Container size（H×W×L）mm 40ft:2896×2438×12192 20ft:2896×2438×6058
Weight of container（T） 8 4
Container load-bearing（T） 15 7
Container protection Waterproof, dustproof, anti-mold, protection grade:IP55
Operation Environment Ambient temperature（℃） -40~50（-20 ℃ below require optional low temperature components and water pipes need to do insulation treatment）
Altitude（m） More than 1000m need to be derated

Related Application Cases

Related Products

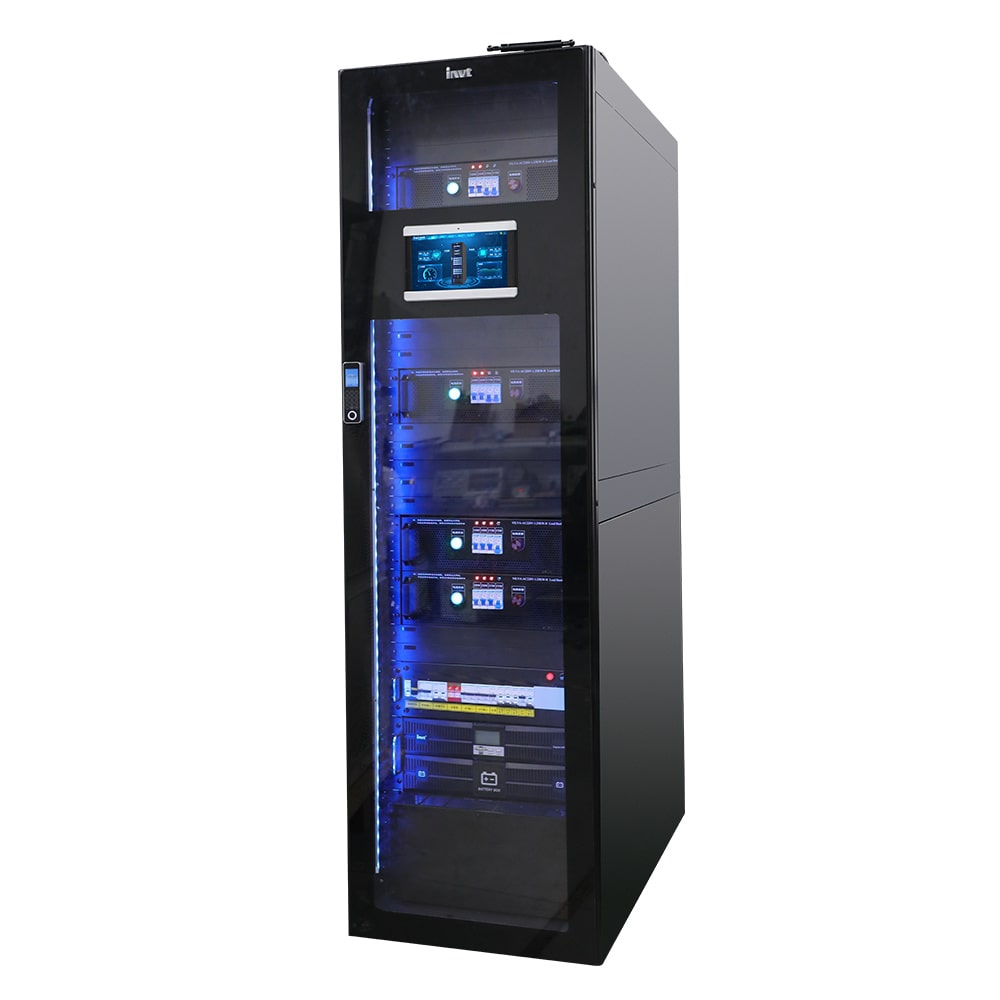

iSmart Series Micro Data Center Solution

iSmart Series Micro Data Center Solution

iSmart Series Micro Data Center Solution, also know as the mini & micro integrated data center, integrates UPS, air conditioner, power distribution module, monitoring system, temperature and humidity detection, light and access control in a standard 19-inch server cabinet. All equipment is pre-installed and precommissioned in the factory. The on-site installation is easy and convenient, which can realize rapid deployment, occupy less area, and comes with remote web interface monitoring function, which can realize remote operation and maintenance of a site.

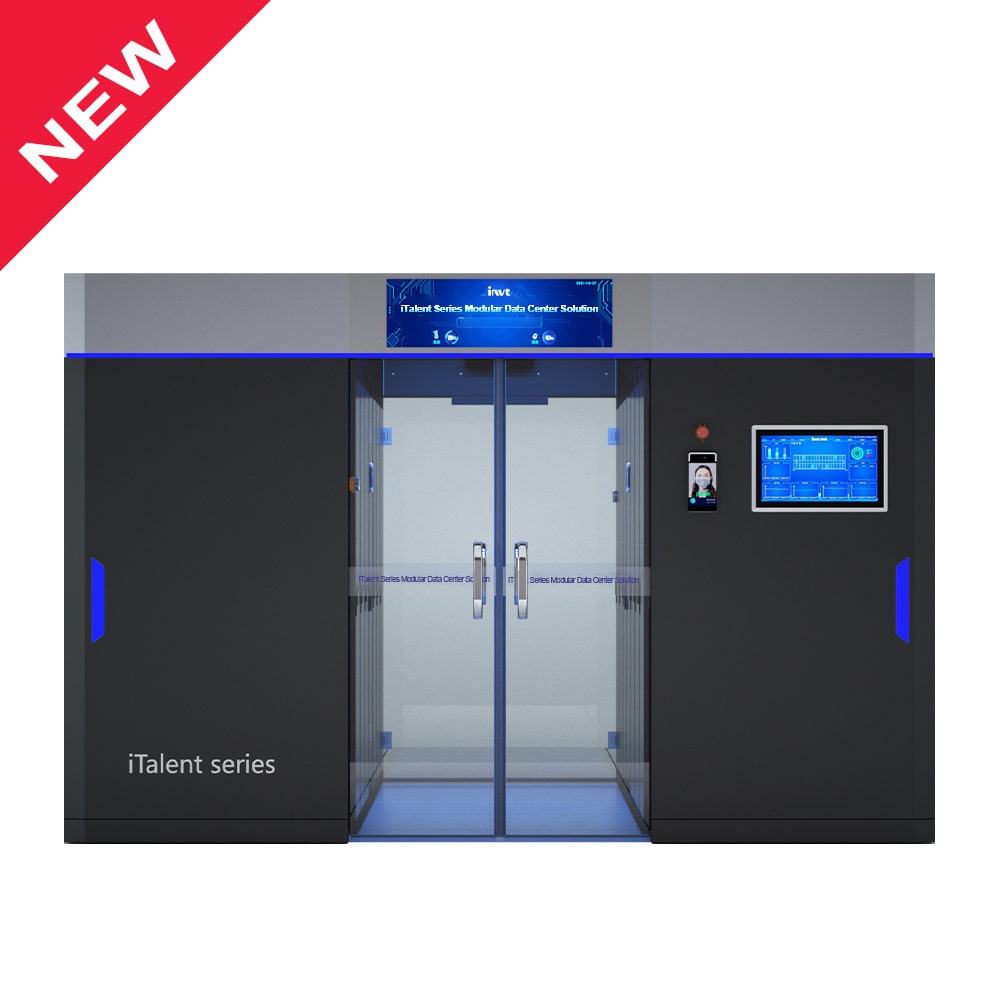

iTalent Series Modular Data Center Solution
