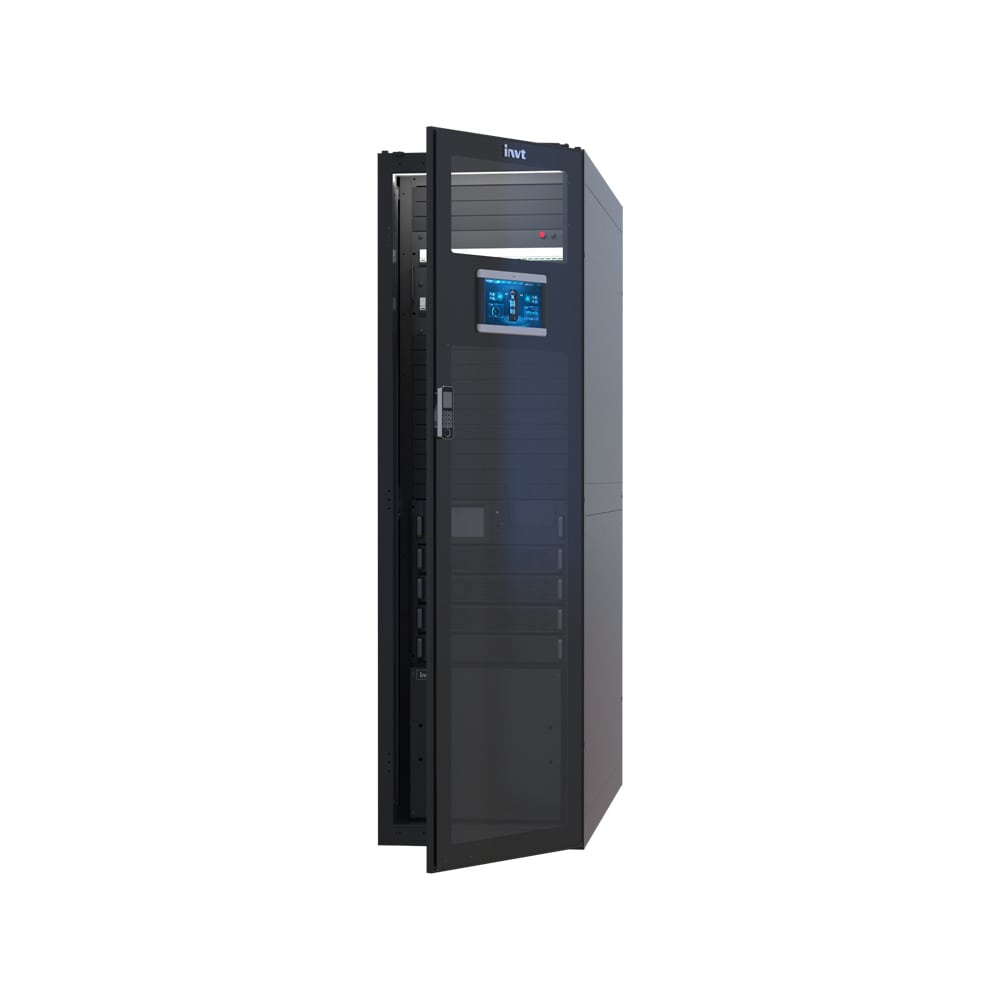

The Medium-Sized Integrated Data Center Solution integrates all needed equipment into cabinet with closed hot and cold aisles. The overall area of a single cabinet is 0.84㎡, which is suitable for computer rooms within 20-60㎡. We can provide customers with all options and you can choose according to your needs.
Customer Values：
1. Safe and reliable.
2. High efficiency and energy saving.
3. Rapid installation.
4. Intelligent management.
Core Features：
1. Saving 3U cabinet space.
2. Saving energy more than 25%.
3. Workable in outdoor environment.
4. 4-6 hours from installation to use.
| Overall plan | IT cabinet number | 2-15 cabinets | |
| Mains | Single Phase:220Vac,50Hz,1Ph+N+PE | ||
| Three Phase:380Vac,50Hz,3Ph+N+PE | |||
| Ambient Temperature | ﹣20-45℃ | ||
| IP Class | IP5X | ||
| Altitude | 1000m, derating for>1000m | ||
| Cabinet | Dimension(W*D*H) | 600*1400*2000mm(Without caster) | |
| Display | 10.1 inch touch screen LCD | ||
| Lighting | Front and rear LED, front Tri-colored LED | ||
| Cable entry | Top and bottom | ||
| Door Security | Fingerprint+IC/ID card+Password | ||
| Emergency Method | pop-up door system | ||
| Power supply and distribution system | Distribution system | Total input current | 63-200A |
| Thunder protection | C Level | ||
| UPS | Capacity | 10kVA-90kVA | |
| Input Voltage | Single Phase:220Vac,50Hz,1Ph+N+PE; | ||
| Three Phase:380Vac,50Hz,3Ph+N+PE | |||
| Operation Mode | 1（phase in)/ 1(phase out),3/1,3/3 | ||
| Battery | Battery pack/cabinet | ||
| PDU | Normal | 2pcs,16ports(13*C10A + 3*C16 ) | |
| Intelligent | Intelligent PDU 24 ports (optional) | ||
| Refrigeration system | Power Supply | Mains power supply | |
| Cooling Capacity | 3.7-25kW | ||
| Installation Method | Rack-mount/array can be chosen | ||
| Inlet Outlet Method | Air flow out from ahead and circle to back | ||
| Compressor Type | Variable frequency | ||
| Monitoring system | Dynamic Environment Monitoring | Intelligent integrated monitoring host | |
| Standard power collection | |||
| Environment Monitoring | Smoke sensor*1,can have an addition | ||
| Temperature&humidity sensor(optional) | |||
| Water leakage sensor*1 | |||
| Webcam(optional) | |||
| Infrared detector(optional) | |||
| Other Optional Accessories | SMS alarm(optional) | ||
