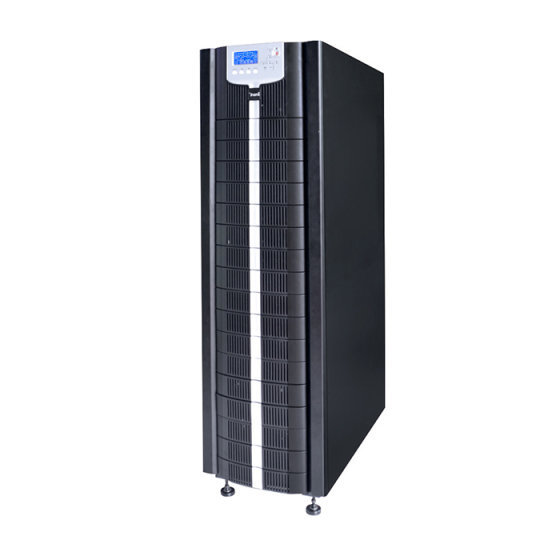

The series in-built transformers Tower Online UPS for small load scenarios, and widely used in office, health care equipment and the mall. It has 10kVA, 20kVA, 30kVA, 40kVA can be chosen, It has the same outstanding performance as 10-40kVA Tower Online UPS. the 20kVA and 30kVA product can also be used in industrial site, such as ceramic factories, glass factories and other processing industries. And becasue of the in-built galvanic isolation transformer, it provides more safety for small load scenarios.
● In-built galvanic isolation transformer
● High input PF>0.99 ,Input current THDi<4%
● Muti-protection,over-temprature protection with 8 sensors,over-load,battery under voltage,fan failures,short-circuit
● Four circuit breakers,providing full protection when fault happens
● Battery cold start
● Battery management: smart charging control, auto maintenance, greatly extend the battery life
● Parallel up to 8 units
● Friendly Operation Interface, high-resolution LCD screen
| MODEL | HT33010X-TX | HT33020X-TX | HT33030X-TX | HT33040X-TX |
| Capacity | 10kVA | 20kVA | 30kVA | 40kVA |
| INPUT | ||||
| Phase | 3Ph+N+PE,380V/400V/415V(line to line) | |||
| Voltage range | 304-478Vac (Line-Line),full load; | |||
| 228V-304Vac (Line-Line),load decrease linearly according to the min phase voltage | ||||
| Frequency range | 40-70Hz | |||
| THDi | <4% | <3% | ||
| Power factor | >0.99 | |||
| OUTPUT | ||||
| Voltage | 380/400/415VAC (Line-Line) | |||
| Voltage regulation | ±1.5% | |||
| THDu | <1% (linear load), | <1%(linear load),<5%(non-linear load) | ||
| <5.5% (non-linear load) | ||||
| Power factor | 0.9 | |||
| Frequency range | 50/60Hz | |||
| Frequency precision | 0.01% | |||
| Overload capability | 110% for 60 min; 125% for 10 min;150% for 1 min;>150% for 200ms | |||
| BATTERY | ||||
| Voltage | ±240VDC | |||
| Charger power | 20%*System Power | |||
| Voltage precision | 1% | |||
| SYSTEM | ||||
| System efficiency | Normal mode: 92% | |||
| ECO mode: 98% | ||||
| Battery mode: 92% | ||||
| Display | LCD + LED + Keyboard | |||
| IP class | IP20 | |||
| Interface | Standard: RS232, RS485,Dual input kit; | |||
| Option: SNMP, Dry contact, Parallel kit, Battery cold start | ||||
| Operation Temperature | 0-40℃ | |||
| Relative humidity | 0-95%(Non condensing) | |||
| Noise | <55dB (1 meter away) | |||
| PHYSICAL | ||||
| Weight(Kg) | 200 | 220 | 240 | 300 |
| Dimension (W*D*H) | 350*738*1335 | 500*840*1400 | ||
