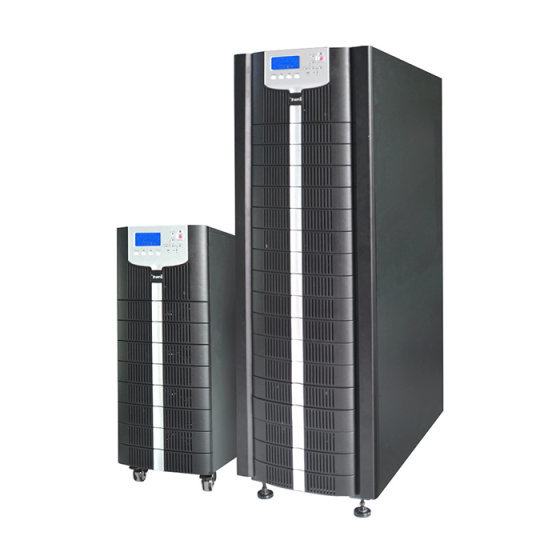

The series Tower Online UPS for small load scenarios, and widely used in office, health care equipment and the mall. It has 10kVA, 15kVA, 20kVA, 30kVA, 40kVA can be chosen, and supports 8 units parallel. Otherwise, the 20kVA and 30kVA product can also be used in industrial site, such as ceramic factories, glass factories and other processing industries.
● High Efficiency,up to 96%
● High input PF>0.99;Input current THDi<3%
● Muti-protection, as temperature, overload, battery under voltage, fan failures, short-circuit
● Four circuit breakers, providing full protection when fault happens battery cold start
● Full DSP control
● Battery management: smart charging control, auto maintenance, greatly extend the battery life
● Parallel up to 8 units
● Friendly operation interface, high-resolution LCD screen
HQ33 Series Rack Online UPS 10-25 KVA (380V/400V/415V)
The series Rack Online UPS is the ideal choice for modern data center. It has 10kVA, 15kVA, 20kVA, 25kVA can be chosen, The series is double conversion online UPS with fully DSP controlled technology,and it can be configured with 3:3 and 3:1 flexibly.
UL33 Series Tower Online UPS 60-500KVA (380V/400V/415V)
The series Tower Online UPS is a high stability and scalability product for medium and large data center. The series has 60kVA, 80kVA, 90kVA, 100kVA, 120kVA, 150kVA, 200kVA, 250kVA, 300kVA, 400kVA, 500kVA can be chosen. And it supports swappable, each power module capacity reaches 500kVA in one cabinet but footprint less than 1.45m2.
UL33-40-TX-TX Series Tower Online UPS
UL33-TX Series is a three-phase UPS with an in-built transformer, utilizing advanced technology to enhance performance and reliability. Equipped with dual high-speed DSPs and full digital control, it ensures high-quality power supply, high input power factor, and low input current distortion. The integrated transformer provides enhanced safety and reliable protection for critical loads.
HR33 Series Rack Online UPS 30-40kVA (380V/400V/415V)
The HR33 Series Rack-mounted Online UPS adopts online double conversion design, based on DSP full digital control, to provide a stable and uninterrupted power supply for important loads, which can eliminate surges, instantaneous high voltage, instantaneous low voltage, and "Power pollution" such as wire noise and frequency offset, provide customers with high-efficiency and high-power-density power supply guarantees. the UPS can be plugged into the 19-inch standard server cabinet of the micro-module data center. The single cabinet has a capacity of 40kVA/40kW, and the system supports 4 parallel.
